Açık hava fiber optik kablosu
Created with Pixso. 96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

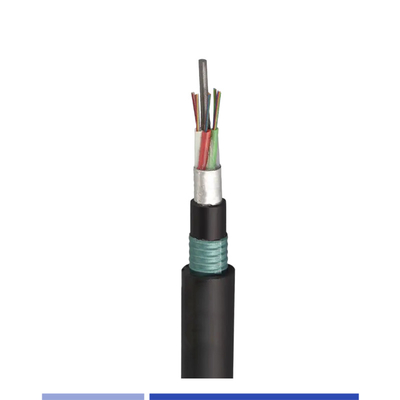

96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

Marka Adı: GoreLink
Model Numarası: GL-GYTA53-896
Adedi: 1000m
Teslim Zamanı: As per the order quantity
Ödeme Şartları: T/T,Paypal,Western Union
Ayrıntılı Bilgiler
Menşe yeri:
Çin'de yapılmış
Sertifika:
ISO,RoHS,REACH
Application:
Direct Burial Fiber Optic Cable
Bölüm Numarası:
GL-GYTA53-896
Fiber Type:
Singlemode G652D
lif sayısı:
96 Elyaf
Güç Üyesi:
Metalik merkezi güç elemanı
İç Kılıf:
PE
Armored:
Aluminum tape+corrugated steel tape
Max. Maks. Capacity Kapasite:
288 çekirdeğe kadar
Fiber Code:
GYTA53
dış ceket:
PE

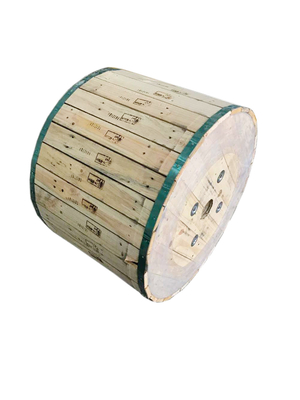

Ambalaj bilgileri:
Ahşap Davul
Ürün Tanımı


Gorelink Direct-buried fiber optic cables can be directly buried in the ground, which eliminates the need for additional protective conduits or ducts, saving installation time and costs. They are designed to offer increased durability and resistance to moisture, temperature fluctuations, and physical damage.





Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks



General Specification





Fiber Mode

Singlemode G652D

Fiber Count

96 Core

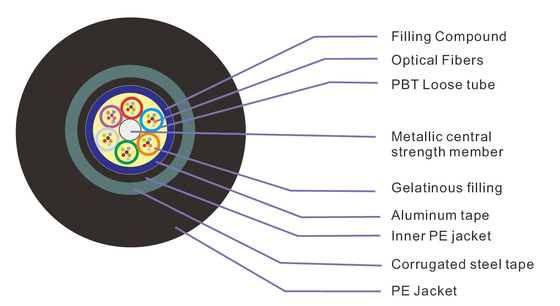

Cable structure

Stranded Loose tube

Double Armor

Aluminum + Corrugated Steel Tape Armor

Inner Sheath

PE

Strength Member

Metallic

Cable Diameter

12.0-18.5mm

Outer Jacket

PE

Cable Color

Black

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤0.36 dB @1310nm

Core diameter(um)

9±2.5

Cladding diameter(um)

125±1.0

Wavelength

1310nm / 1550nm










96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable 0







Download Datasheet



Outdoor Direct Burial Armored Fiber Optic Cable- GYTA53-Singlemode





Ordering Information



PART NO.

DESCRIPTION

GL-GYTA53-808

Outdoor Fiber Optic Cable, 8 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

GL-GYTA53-812

Outdoor Fiber Optic Cable,12 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

GL-GYTA53-824

Outdoor Fiber Optic Cable, 24 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

GL-GYTA53-848

Outdoor Fiber Optic Cable, 48 Fiber,Singlemode G652D,Direct Buried, PE,Black,GYTA53

GL-GYTA53-896

Outdoor Fiber Optic Cable, 96 Fiber,Singlemode G652D, Direct Buried ,PE,Black,GYTA53

GL-GYTA53-8144

Outdoor Fiber Optic Cable, 144 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

* Customized





If you need any further assistance, please feel free to contact us at sales@gorelink.com .
